High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut

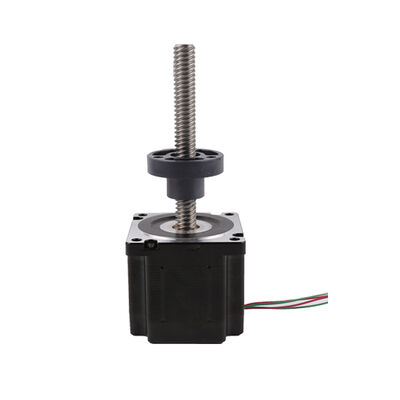

  • High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut

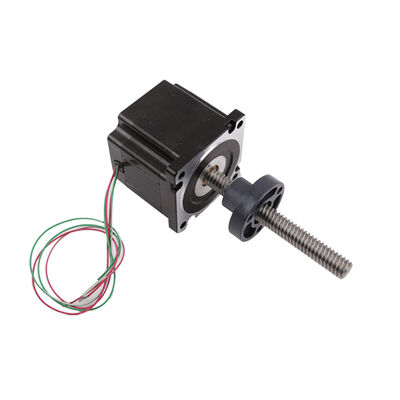

  • High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut

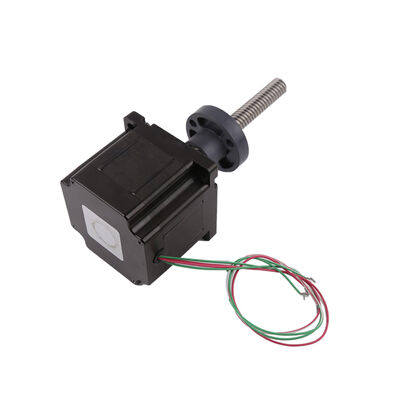

  • High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut

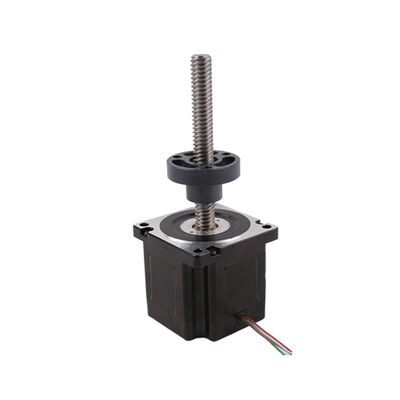

  • High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut

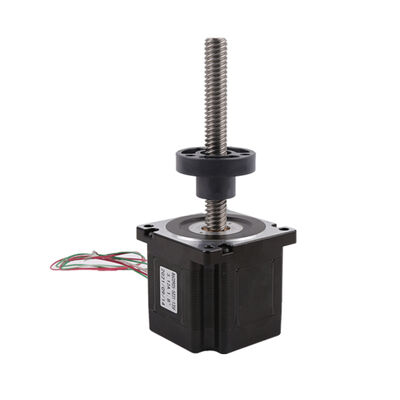

  • High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut
Plaats van herkomst Jiangsu, China (vasteland)
Merknaam VIC-TECH
Certificering RoHS
Modelnummer 86C0905-5031-135F
Min. bestelaantal 1 eenheid
Prijs $124.00 - $145.00 / Units
Verpakking Details Standaard exportpakket, of kan worden aangepast
Levertijd 15-30 werkdagen
Betalingscondities T/T, Western Union, MoneyGram
Levering vermogen 100000 eenheden per maand

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Staphoek (graden) 1,8° Minimale duw 50KG/300pp
Fase 2 Type Hybride
Stroom / fase 3.12A Spanning 5V
Laat een bericht achter
Productomschrijving

NEMA34 stepper motor with straight T-shaped screw and nut motor

This motor has a diameter of 86mm and a T-shaped screw with a nut, making it a very classic and powerful high-precision linear motion solution. It perfectly combines the advantages of stepper motors and the mechanical structure of screw rods, and is widely used in scenarios that require precise position control and reliable holding force
The hybrid stepper motor has a natural magnetic resistance holding torque when powered off, and with the mechanical self-locking of the screw (especially the trapezoidal screw), it can firmly maintain its position in the absence of power, saving energy and improving safety.
Customers can choose the thickness of the motor according to their needs to meet installation requirements





Mechanical Dimension:MM



High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut 0

Technical Features

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.



Typical Applications

  • This combination is very suitable for scenarios that require medium to large loads, medium to low speeds, and precise point control:

  • 3D printer (large/industrial grade): controls the precise movement of the print head or platform.

  • CNC machine tool: Drive the feed of the tool holder and worktable on the X/Y/Z axes.

  • Automated assembly equipment: used for precision part handling, alignment, and pressing.

  • Laser cutting/engraving machine: Control the scanning path of the laser head.

  • Medical equipment: such as sample injection pumps, scanner mobile platforms.

  • Laboratory instruments: positioning of the stage for spectrometers and microscopes.

  • Packaging machinery: fixed length cutting, packaging position control.

序号

No.

 项目 ITEM

规格

SPEC.

备注

REMARKS
1 额定电压 Voltage

5VDC


2

驱动电压

Source Voltage

24 VDC

表示供电电源施加在驱动回路上的电压.在恒压驱动方式下,它和额定电压相同.

Indicates the voltage that the power supplier applys to the driver circuit.

It is same as the rated voltage when motor is drived on a constant voltage model.
3 相数 Phase 2 Phase
4

额定电流

Rated Current

 3.5 A /Phase

微步驱动时的峰值

Peak value when microstep
5

励磁模式

Exciting mode

 Bipolar
6 步距角Step angle 1.8 deg ±7％
7 转向Rotation CW/CCW









The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.



Torque Curve For Reference



Product Detail Presentation

  High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut 1
