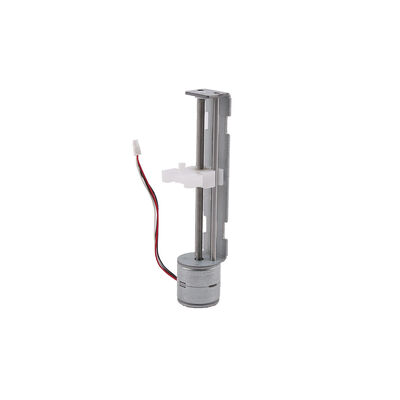

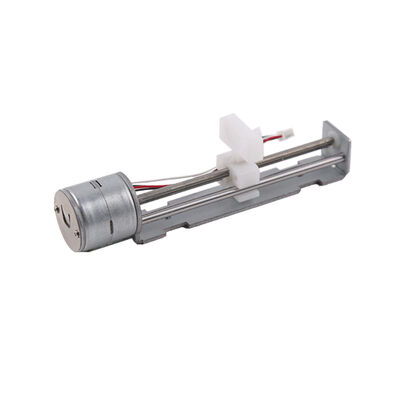

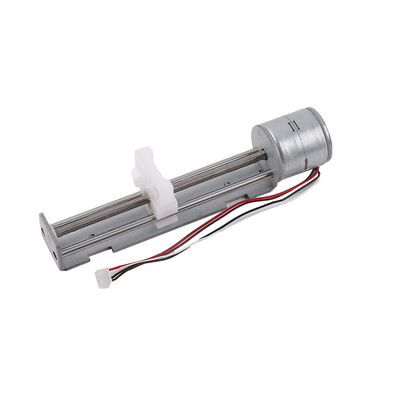

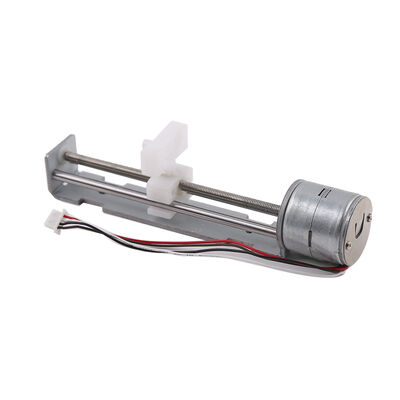

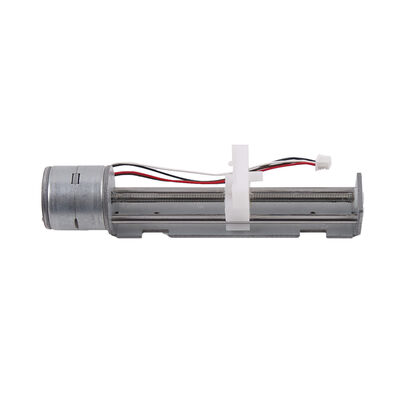

12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut

  • 12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut
  • 12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut
  • 12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut
  • 12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut
  • 12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut
  • 12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut
Plaats van herkomst Jiangsu, China (vasteland)
Merknaam VIC-TECH
Certificering RoHS
Modelnummer SM20-63L
Min. bestelaantal 1
Prijs $4.5-$12
Verpakking Details Verkopende Eenheden: Enig punt plastic vakje binnen, buitendocument vakje Pakket: enige kartonverpak
Levertijd 15 ~ 30 dagen nadat het monster is betaald
Betalingscondities Western Union, MoneyGram, Creditcard, VISA, T/T
Levering vermogen 10000 stuks 45 dagen

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Type Permanente magneet Stappenhoek 18°
Fase 2 Stroom / fase 400 mA
Nominale spanning 12V Spiraalweerstand 30Ω±10%
Hartinfarct 63 mm Stootkracht 10N/22,5 mm/sec
Laat een bericht achter
Productomschrijving

NEMA8 20mm 12vDC small stepper motor PM 3D printer micro linear stepper motor micro stepper motor with slider

This is a precision micro stepper motor with a screw pitch of M3P0.5mm on the output shaft, which is rotated into thrust through the screw and its support.
The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving precise control.
The thrust of a 20mm diameter motor is approximately 10N, which depends on the customer's driving frequency and can be tested on actual samples
The motor is equipped with a plastic slider for easy connection with customer parts, saving costs. The effective stroke of the screw is 63mm, and it can also be customized according to the actual needs of the customer
The actuator adopts a segmented driving method to meet the requirements.
Due to its excellent characteristics such as small size, high precision, and easy control, this miniature stepper motor is widely used in fields such as cameras, optical instruments, lenses, precision medical equipment, and automatic door locks.
The input part of the motor adopts FPC, but it can be replaced with connection pins, PCB and other forms according to customer needs.
The installation bracket can be replaced according to customer requirements.





12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut 0





Mechanical Dimension:MM

12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut 1

Technical Features

Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Main Application

1) Camera

2) Optical instruments

3)  Lenses

4)  Precision medical devices

5)  Automatic door locks

Specifications

PRODUCT NAME

20mm lead screw motor

MODEL

SM20-63L
RATED VOLTAGE 12 V DC (Driver IC : L6219)
CURRENT PER PHASE 400 mA/PHASE
COIL RESISTANCE 30土10%ohm /PHASE C 20C')
PULL-OUT Thrust MORE THAN 500g AT 700pps
NO. OF PHASES 2 PHASES
STEP ANGLE 18 °/STEP
EXCITATION METHOD 1一2 PHASES EXCITATION

MAX. STARTING FREQUENCY

MORE THAN 1100 PPS

MAX. RESPONSE FREQUENCY

MORE THAN 1600 PPS

PULL IN TORQUE

MORE THAN 500g (AT125 PPS , 12V DC)

INSULATION CLASS

CLASS E FOR COILS

INSULATION STRENGTH

100 V AC FOR ONE SECOND

INSULATION RESISTENCE

50 MΩ (DC 100 V)

OPERATING TEMPERATURE RANGE

-0 ~+55 ℃

OEM & ODM SERVICE

AVAILABLE





Product Detail Presentation



 12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut 2





Type Of Wire Connect For Reference

Motor input method with Pin type,FPC, PCB, Lead wire etc. These can be customized according to customer needs.

12VDC linear motor 20mm bracket motor 2-phase 4-wire slider stepper motor with plastic nut 3
