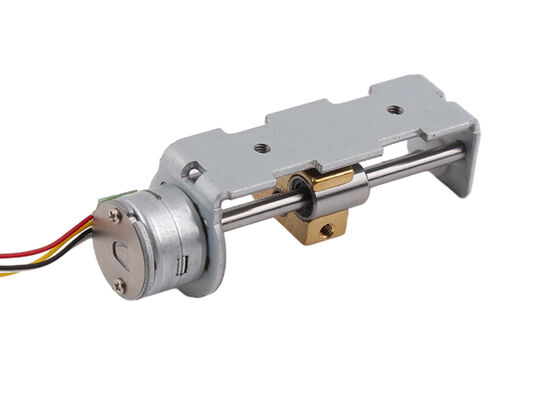

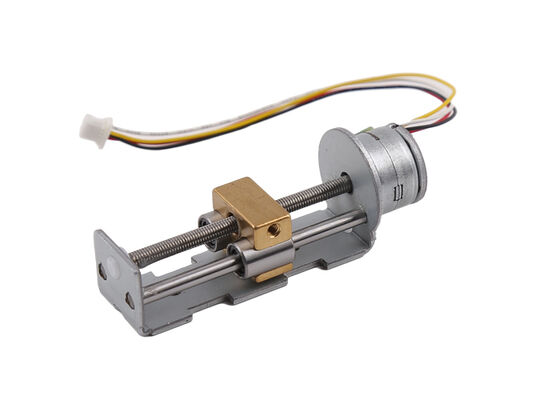

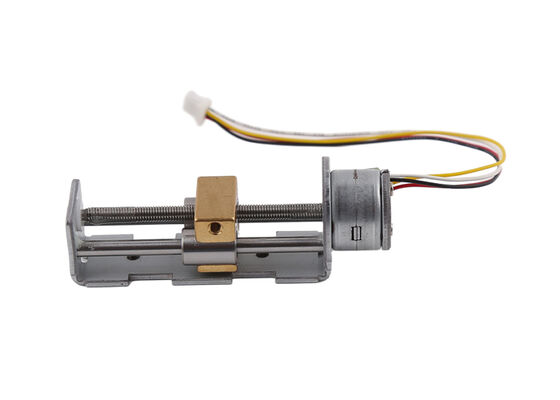

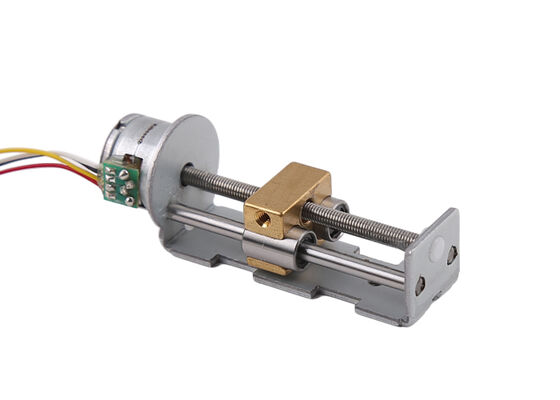

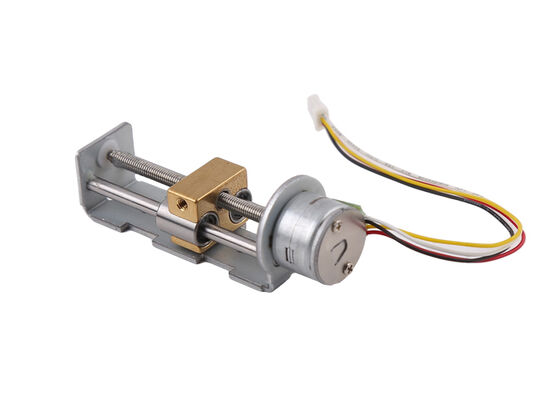

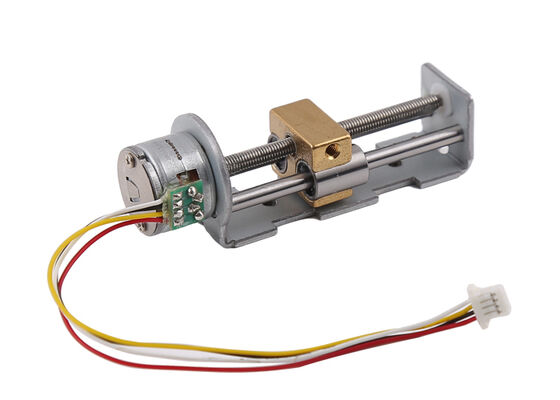

15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase

  • 15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase
  • 15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase
  • 15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase
  • 15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase
  • 15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase
  • 15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase
Place of Origin China
Merknaam Vic-Tech motor
Certificering RoHS
Model Number SM15-45L-T
Minimum Order Quantity 1 pc
Prijs US$4.5~18.5
Packaging Details The product is packed with pearl cotton, and the outside is in a carton. Most bulk products use pallets for easy transportation and product protection
Delivery Time 3~15 days
Payment Terms T/T, D/P
Supply Ability 100000/month

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Motor Size 15mm （optional 6 8 10 20 25） Step Angle 18 Degree
Motor Type Stepper Motor With Lead Screw Movement Type Linear （forward And Backward ）
Lead Pitch M3 Pitch 0.5mm Driving Voltage 6 VDC
Coil Resistance 15 Ohm （can Customization） Driving Method Bi-polar 2-2 Phase
Markeren

15mm electric stepper motor

,

5VDC linear stepper motor

,

M3 lead screw stepper motor
Laat een bericht achter
Productomschrijving


15mm M3 lead screw slider stepper motor features:

SM15-45L is a precision miniature stepping motor equipped with a bracket, a lead screw and a relative motion slider. The output shaft has a lead screw with a pitch of 0.5mm, and the lead screw and the lead screw supported by the lead screw rotate into thrust.
The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
In terms of actuators, the subdivision drive method is used to satisfy.
The input part of the motor is FPC, but it can be changed to the form of connecting wire, PCB, etc. according to customer needs.
Mounting brackets can be replaced according to customer requirements.
Due to its small size, high precision, and easy control, this miniature stepping motor is widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields.





Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application





15mm M3 lead screw slider stepper motor Specifications:



Model No. SM15-45L-T
Motor type Linear stepper motor
Phase No. 2 Phases
Step angle 18 Degrees
Phase resistance 15Ω±10%/phase
Excitation method 2-2 bipolar drive
Rated voltage 5 - 12 V DC
Lead screw type M3*0.5Pitch thread
Stroke 45 mm
Pull-out thrust Over 200 gf at 500 PPS
Max response frequency Over 1100 PPS





Drawing of 15mm plastic slider stepper motor with 45mm stroke:



15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase 0







Product display for 15mm plastic slider stepper motor:

15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase 1

15mm 5VDC Electric Stepper Motor With Slider M3 lead screw 18 degreeStep angle Bi-polar 2-2 phase 2



Customers can customize content:

1. In terms of the outer diameter of the motor, different sizes such as 6mm 8mm 10mm 15mm 20mm 25mm can be selected according to the customer's use environment and space strength.



2. The outlet position of this motor can be freely selected within a range of 360 degrees to meet the installation requirements in the best state. At the same time, the connector can choose lead, PCB, FPC bare pin.



3. The stroke can be customized according to customer requirements, and the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the lead screw.

Usually the maximum length of M2 screw is 50mm, M3 screw is 100mm, M4 screw is 100mm. We can also do 150mm. Small motors use a lead screw with an excessively large diameter, which consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.



4. The material of the slider is generally plastic, which is easy to form and economical.
When there are special use environments and requirements, the slider can also use metal parts.
Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
