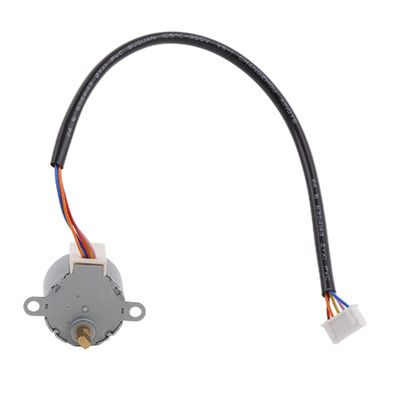

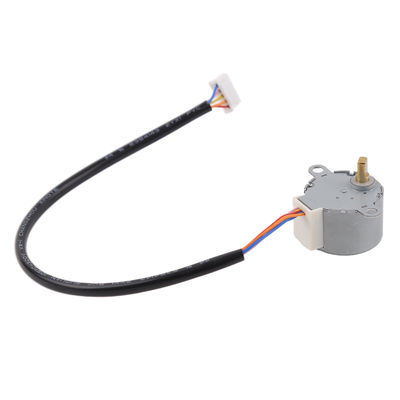

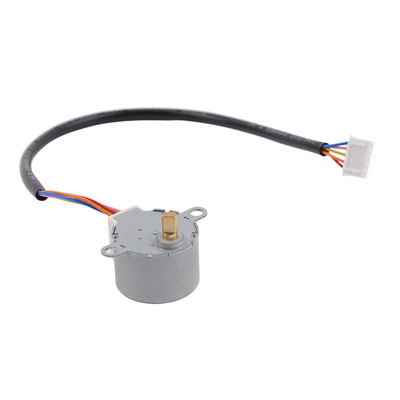

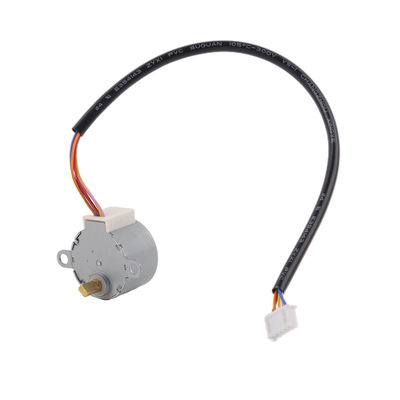

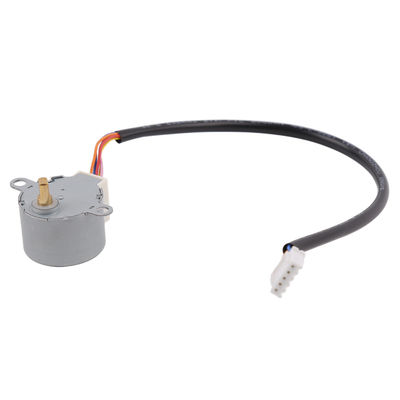

Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox

  • Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox
  • Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox
  • Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox
  • Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox
  • Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox
Plaats van herkomst China
Merknaam Vic-Tech
Certificering China
Modelnummer 28BYJ48

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Motorype Versnellingsbakpm motor Staphoek 5.625°/64
Nominale spanning 12V DC Toestelverhouding 64:1
Drijfwijze Eenpolig Fasenummer 4 fasen
Markeren

28BYJ48 stepper motor with gearbox

,

Permanent magnet stepper motor 64:1 ratio

,

Low price PM stepper motor
Laat een bericht achter
Productomschrijving

Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox



Description:

28BYJ48 motor is massively produced product.

This motor is mostly used on a series of household appliances such as smart toilet, air conditioning and so on.

Due to big quantity, the price of this product can be lower compared to other products.

The is a gearbox inside the gearbox, and in general gears are POM(plastic), we can also replace them with metal gears, and it would increase its cost by doing so.



Parameters:

Motor type PM stepper motor+gearbox
Model No. 28BYJ48
Rated Voltage 12V DC
Coil resistance 100Ω/phase
Step angle 5.625°/64
Gear ratio 64:1
Pull-in torque ≥49 mNm
Cable number 5 cables (unipolar)



Design drawing:

Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox 0



Product display:



Low price 28BYJ48 permanent magnet PM stepper motor with 64:1 ratio gearbox 1

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life



Stepper motor with gearbox:

Gearbox can boost motor’s torque, and reduce motor’s speed

We have different gear ratios for you to choose, also gearbox’s efficiency is related to gear levels.

Output torque=original torque*gear ratio* gearbox efficiency

Output speed= original speed/gear ratio



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)



Our company information:

Changzhou Vic-tech Co., Ltd is founded in 2011. It has been specializing in producing micro motors and accessories , with over 20 years of R&D experience in motor industry.

After ten years of continuous innovation and development, we started to expand international business, with exports to Europe, South America, Canada, USA, Asia, and Australia.

We offer OEM/ODM service, and ensure timely response, personal test, safe packaging, on time delivery. One of the biggest reasons behind this success is our efficient after-sale service, ensure timely and professional assistance for clients.
