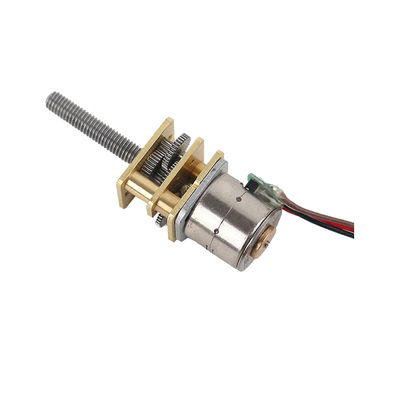

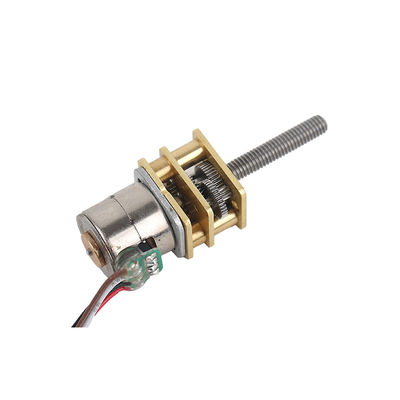

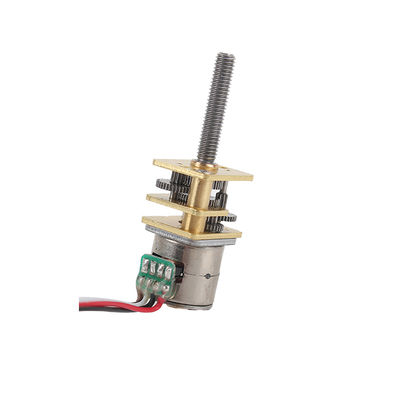

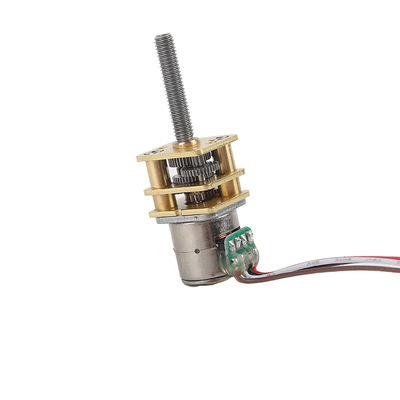

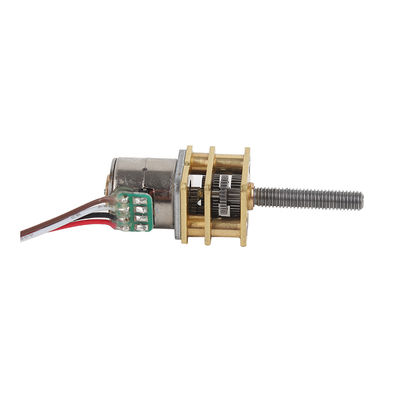

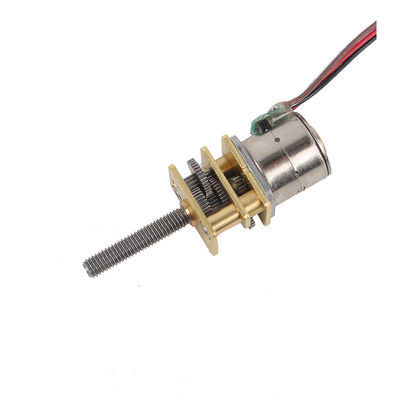

10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor

  • 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
  • 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
  • 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
  • 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
  • 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
  • 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
Plaats van herkomst Jiangsu, China
Merknaam Vic-Tech
Certificering ISO9001
Modelnummer VSM10-816G
Min. bestelaantal 1
Prijs $3.45-7

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Fase 2 Type Permanente magneet
Stroom per Fase 150 ma Spanning 3.3V~12V
Weerstand 40Ω ± 7% Spannende methode 2-2 FASE
Overbrengingsverhouding 1: 2 ~ 1: 1000 Snelheid 3 ~ 1500 tpm
Stappenhoek 18° Loodhoogte 0,5
Schacht M3-schroef Rotatie CW CCW
Motorische diameter 10 mm Resolutiehoek 0,05 ~ 6 graden
Modelnummer VSM10-816G
Markeren

150 mA Mini Gear Motor

,

3.3V~12V 2 Phase Stepper Motor

,

40Ω±7% Micro Stepper Motor
Laat een bericht achter
Productomschrijving
Mini Gear Motor 10mm with Right Angle Metal Geared Step Motor 2 Phase Stepper Motor
10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor 0 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor 1
10mm diameter mini gear motor with 5V micro geared stepper motor and 2 phase stepper motor gearbox. The motor features a basic step angle of 18 degrees (20 steps per turn), with gearbox reduction providing final rotation angle resolution from 0.05° to 6° for precise position control applications.
Constructed with precious metal brushed DC motor and precision metal reducer. Available gear reduction ratios range from 1:2 to 1:1000 to meet various speed and torque requirements. The gearbox is manufactured using advanced international processing equipment for high precision, efficiency, and low noise operation.
Key Features
  • Multiple input options: probe structure, FPC, FFC, PCB cable
  • Versatile output structures: circular axis, D axis, wire rod
  • High reliability through optimized manufacturing processes
  • Precision metal gearing for smooth operation
  • Wide range of gear ratios available
Specifications
Model Number VSM10-816G
Phase 2
Type Permanent Magnet
Current / Phase 150 mA
Voltage 3.3V~12V
Resistance 40Ω±7%
Exciting method 2-2 Phase
Gear Ratio 1:2~1:1000
Certification ISO9001
Speed 3~1500rpm
Step Angle 18°
Lead Pitch 0.5
Shaft M3 screw
Rotation CW/CCW
Shaft Types
Standard output shaft configurations available, with customization options based on customer drawings. Contact our customer service for more details.
10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor 2 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor 3 10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor 4
Company Profile
10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor 5
Changzhou Vic-Tech Motor Technology Co., Ltd specializes in micro motors and accessories since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With a 20-year experienced R&D team, we provide custom design and development services, maintaining our position as an industry pioneer through quality and reliability.
Frequently Asked Questions
1. Who are we?
Based in Jiangsu, China since 2011, serving domestic and international markets including North America, Northern Europe, and Southeast Asia with a team of 51-100 professionals.
2. How can we guarantee quality?
Pre-production samples for approval and final inspection before shipment ensure consistent quality standards.
3. What can you buy from us?
Stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why choose us?
Specializing in micro motors since 2011 with custom design services and a focus on quality and innovation.
5. What services do we provide?
Flexible delivery terms (FOB, CIF, EXW, DDP) and payment options (T/T, Credit Card, PayPal) with support in English and Chinese.
