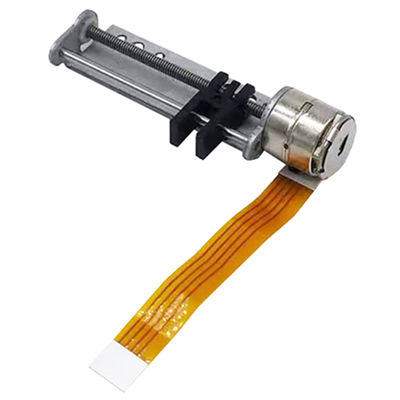

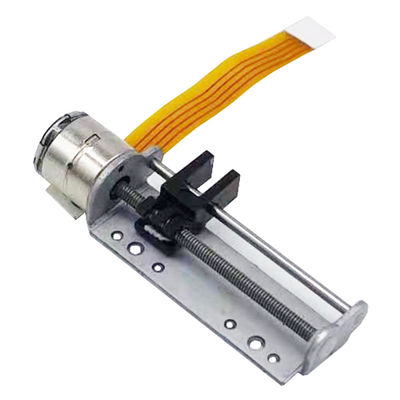

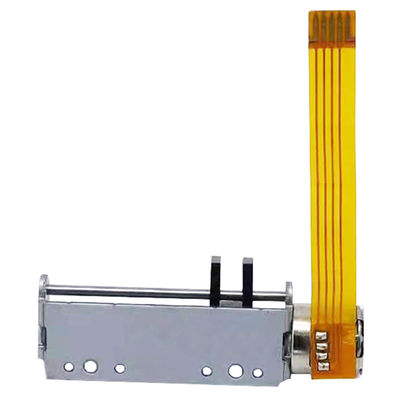

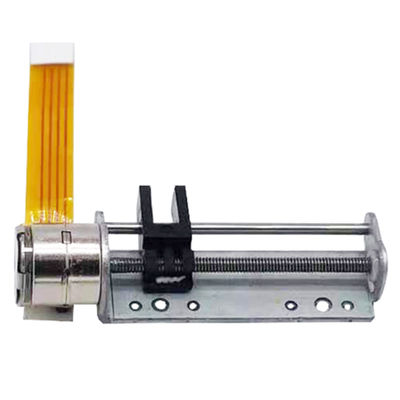

2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments

  • 2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments
  • 2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments
  • 2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments
  • 2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments
Plaats van herkomst Jiangsu, China
Merknaam VIC-TECH
Certificering RoHS
Modelnummer VSM1069
Min. bestelaantal 2
Prijs $2.20-7

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Fase 2 Stroom per Fase 270MA
Motorische diameter 10 mm Nominale spanning 3.0 V DC
Spiraalweerstand 15Ω±10% Stappenhoek 18°/step
Maximale startfrequentie 800 PPS min Maximaal draaifrequentie 1100 pps min
TREKKRACHT IN TORSIE 3.0 GF-cm min TREK TORSIE TERUG 3.8 GF-cm min
Isolatieklasse Klasse E Isolatiesterkte 300 V AC
Isolatieweerstand 50mΩ Bedrijfstemperatuur -20 ~+70 ℃
Schroefhoogte 0,4 mm
Markeren

270mA Micro Stepper Motor

,

Micro Slider Screw Stepper Motor

,

Optical Instruments Micro Stepper Motor
Laat een bericht achter
Productomschrijving
2 Phase 4 Wire Stepper Motor 10mm Micro Slider Screw Stepper Motor
2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments 0
The VSM1069 is a precision micro stepper motor featuring an output shaft with a 0.4mm pitch screw. The screw mechanism converts rotational motion into linear thrust, enabling precise positioning control.
With a basic step angle of 18° (20 steps per revolution), this motor achieves a displacement resolution of 0.02mm, making it ideal for applications requiring high-precision motion control. The actuator utilizes subdivision drive technology for smooth operation.
Key Features
  • Compact 10mm diameter design
  • High precision with 0.02mm resolution
  • Versatile input options (FPC, connecting wire, or PCB)
  • Customizable mounting bracket
  • Wide operating temperature range (-20°C to +70°C)
  • Ideal for cameras, optical instruments, medical devices, and automated systems
2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments 1
Design Layout (Unit: mm)
Specifications
Parameter Value
Product Name VSM1069 Micro Stepper Motor
Motor Diameter 10mm
Rated Voltage 3.0 V DC
Coil Resistance 15Ω±10%
Number of Phases 2 Phases
Step Angle 18°/Step
Max Starting Frequency 800 PPS min. (AT 3.0 V DC)
Max Slewing Frequency 1100 PPS min. (AT 3.0 V DC)
Pull in Torque 3.0 gf-cm min (AT 500 PPS, 3.0 V DC)
Pull out Torque 3.8 gf-cm min (AT 500 PPS, 3.0 V DC)
Insulation Class CLASS E FOR COILS
Insulation Strength 300 V AC FOR ONE SECOND
Insulation Resistance 50mΩ (DC 100 V)
Operating Temperature Range -20°C to +70°C
Packing & Delivery
2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments 2
Selling Units: Single item in plastic box, outer paper box packaging
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments 3 2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments 4 2 Phase 4 Wire 270mA Micro Stepper Motor with 10mm Micro Slider Screw for Optical Instruments 5
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor controllers. With an experienced R&D team boasting 20 years of motor development expertise, we provide custom design services to meet specific application requirements.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2011, we serve domestic and international markets including North America, Europe, and Southeast Asia. Our team consists of 51-100 professionals dedicated to motor manufacturing.
How do we guarantee quality?
We implement strict quality control measures including pre-production samples and final inspection before shipment to ensure product reliability.
What products do we offer?
Our product portfolio includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors for various industrial applications.
Why choose us?
With over a decade of specialization in micro motor production, we combine technical expertise with custom design capabilities to deliver solutions tailored to your specific needs.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, DDP) and payment methods (T/T, Credit Card, PayPal, Cash). Our team communicates in both English and Chinese to facilitate global business.
