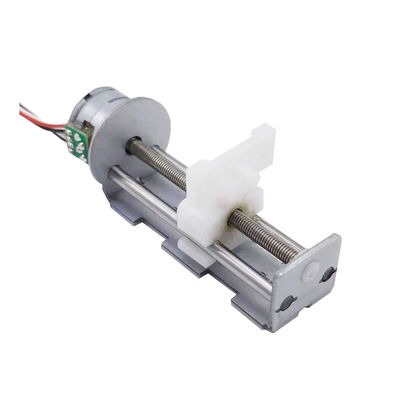

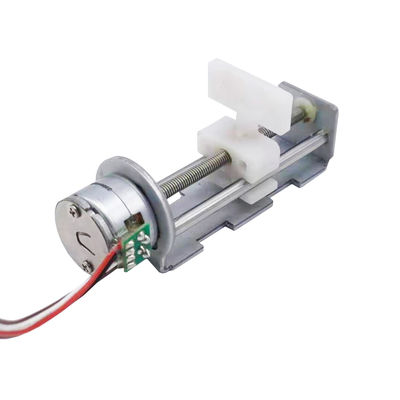

15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution

  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
Plaats van herkomst Jiangsu, China
Merknaam VIC-TECH
Certificering RoHS
Modelnummer SM15-45L
Min. bestelaantal 2
Prijs $6.31-15

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Motorische diameter 15 mm Nominale spanning 6V gelijkstroom
Spiraalweerstand 15 ± 10% ohm/FASE ((20°C) Stroom per Fase 400 ma/fase (1000pps)
No.of fasen 2 fasen Stappenhoek 18°/step
Excitatiemethode 2-2-fasen aandrijving Drive -modus Bipolaire aandrijving
Uittrekkende stuwkracht Meer dan 200 g bij 500 PPS Maximale responsfrequentie Meer dan 1200 pps
Max starenfrequentie Meer dan 900 pps Isolatieklasse Klasse E voor spoelen
Isolatiesterkte 100 V wisselstroom voor één seconde Isolatieweerstand 50MΩ DC 500V
Bedrijfstemperatuurbereik -0~+55℃
Markeren

385mA Micro Stepper Motor

,

0.02mm Resolution Permanent Magnet Stepper Motor

,

6V DC 2 Phase Stepper Motor
Laat een bericht achter
Productomschrijving
15mm Screw Slider Stepper Motor 2 Phase PM Micro Stepper Motor
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 0 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 1
The SM15-45L is a precision screw motor featuring a 0.4mm pitch between the output shaft and screw. The screw rotation generates thrust, with a basic step angle of 18 degrees (20 steps per revolution) achieving a displacement resolution of 0.02mm for precise control. The actuator uses subdivision drive mode to meet application requirements.
Our team brings over 10 years of stepper motor design, development, and production experience, offering custom product development and auxiliary design services tailored to your specific needs.

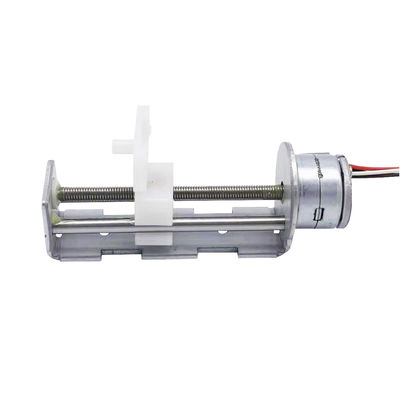

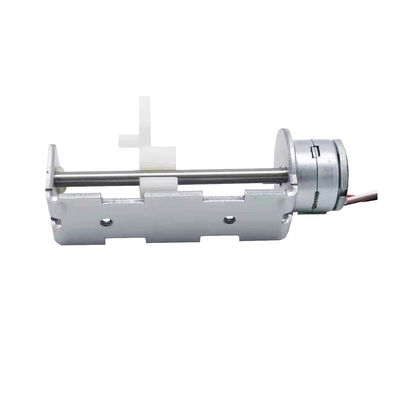

Product Images
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 2 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 3
Design Layout (Unit: mm)
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 4 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 5
Specifications
Model No. SM20-45L-S
Motor diameter 15mm
Rated Voltage 6V DC
Coil Resistance 15±10% ohm/PHASE(20℃)
Current Per Phase 400 mA/Phase(1000pps)
No.Of Phases 2 Phases
Step Angle 18°/Step
Excitation Method 2-2Phases Drive
Drive Mode Bipolar Drive
Pull-out Thrust More Than 200 g At 500 pps
Max Response Frequency More Than 1200 PPS
Max Staring Frequency More Than 900 PPS
Insulation Class CLASS E FOR COILS
Insulation Strength 100 V AC FOR ONE SECOND
Insulation Resistance 50MΩ DC 500V
Operating Temperature Range -0~+55℃
Packing & Delivery
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 6 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 7
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 8 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 9 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 10
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, reliability, and quality, Vic-Tech Motor continues to pioneer international sales by establishing global partnerships.
Frequently Asked Questions
1. Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%). Our team consists of 51-100 professionals.
2. How can we guarantee quality?
We conduct pre-production samples before mass production and final inspections before shipment.
3. What can you buy from us?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why should you buy from us?
Vic-Tech Motor specializes in micro motor production since 2011, offering micro stepper motors, geared motors, underwater thrusters, and controllers with custom design services.
5. What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
