25mm Linear Stepper Motor 7.5 Degree 13mm Stroke

  • 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke
  • 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke
  • 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke
  • 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke
  • 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke
  • 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke
Place of Origin Jiangsu, China
Merknaam VIC-TECH
Certificering RoHS
Model Number VSM25-48S-0127-13-002
Minimum Order Quantity 2
Prijs $6.50-30

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Motor diameter 25mm Rated voltage 5V
Power 3.85W Phase Current 370mA
Phase Resistance 13.5(±10%) Ohm/20C Phase inductance 12.5(±20%) Mh/1kmz
Step angle 7.5° Screw Lead 0.6096mm
Step Travel 0.0127mm Linear Force 55N/300PPS
Stroke 13mm Insulation Resistance 20mΩ (DC 500V)
Operating Temp Range -20~+55℃ Storage Temp Range -40~+100℃
Mass 50g
Markeren

25mm linear stepper motor

,

7.5 degree stepper motor

,

13mm stroke stepper motor
Laat een bericht achter
Productomschrijving
High Positioning Accuracy 25mm Diameter 7.5 Degree Linear Stepper Motor 13mm Stroke
Product Attributes
Attribute Value
Warranty Other
Phase 2
Type Permanent Magnet
Current / Phase 385mA
Product Description

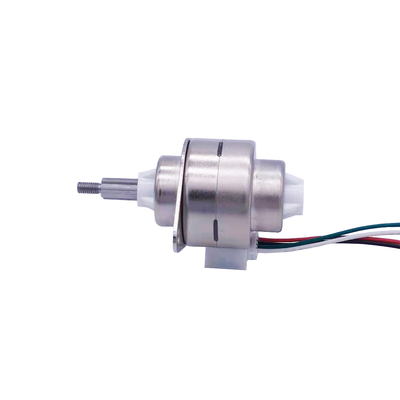

25mm Linear Stepper Motor 7.5 Degree 13mm Stroke 0
This 25mm diameter stepper motor features a fixed shaft design, making it ideal for applications with short stroke requirements where rotation stop devices cannot be provided. Suitable for precision instruments and electronic products, this motor finds wide application across various industrial fields.
Customization options are available. Please contact us for specific requirements.

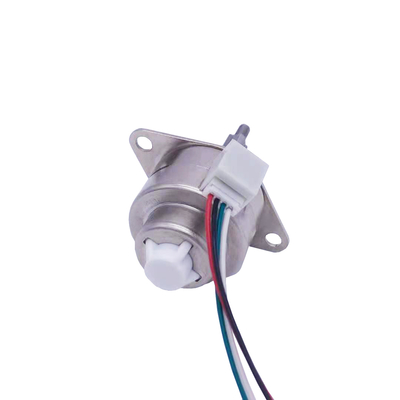

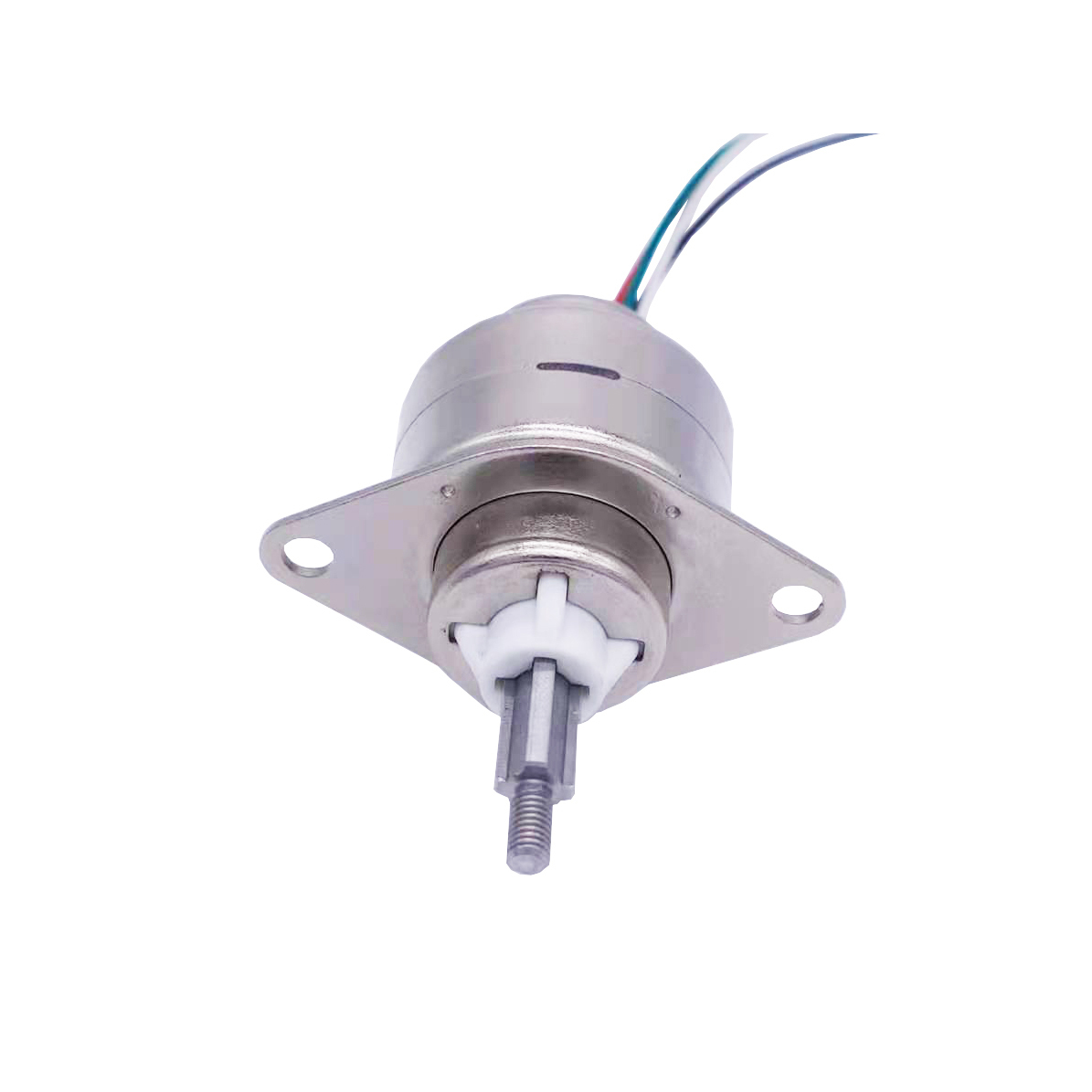

25mm Linear Stepper Motor 7.5 Degree 13mm Stroke 1 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke 2
Specifications
Motor diameter 25mm
Rated voltage 5V
Power 3.85W
Phase Current 370mA
Phase Resistance 13.5(±10%) Ohm/20°C
Phase inductance 12.5(±20%) Mh/1kHz
Step angle 7.5°
Screw Lead 0.6096mm
Step Travel 0.0127mm
Linear Force 55N/300PPS
Stroke 13mm
Insulation Resistance 20mΩ (DC 500V)
Insulation Class B
Operating Temp Range -20~+55°C
Storage Temp Range -40~+100°C
Mass 50g
Packing & Delivery

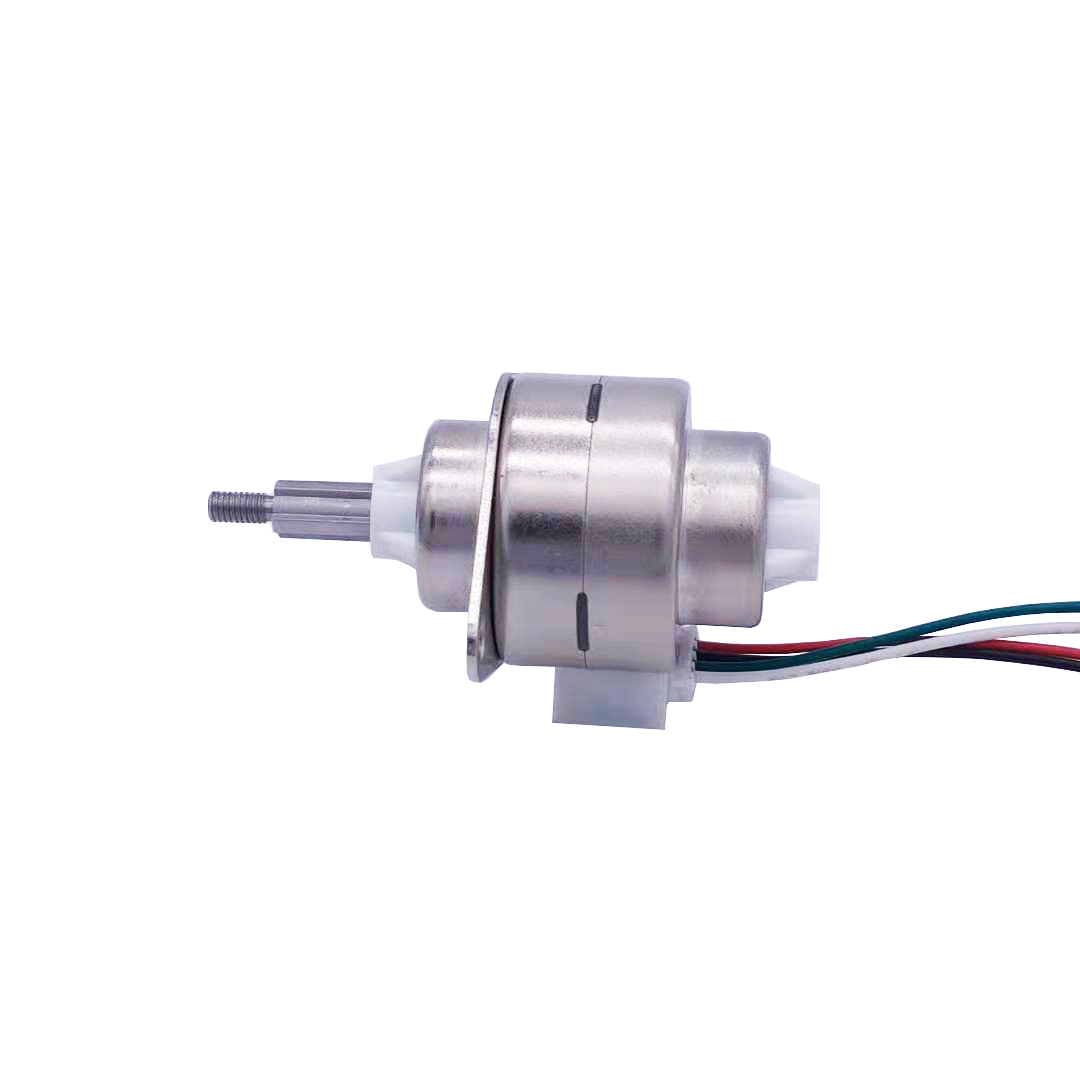

25mm Linear Stepper Motor 7.5 Degree 13mm Stroke 3
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile

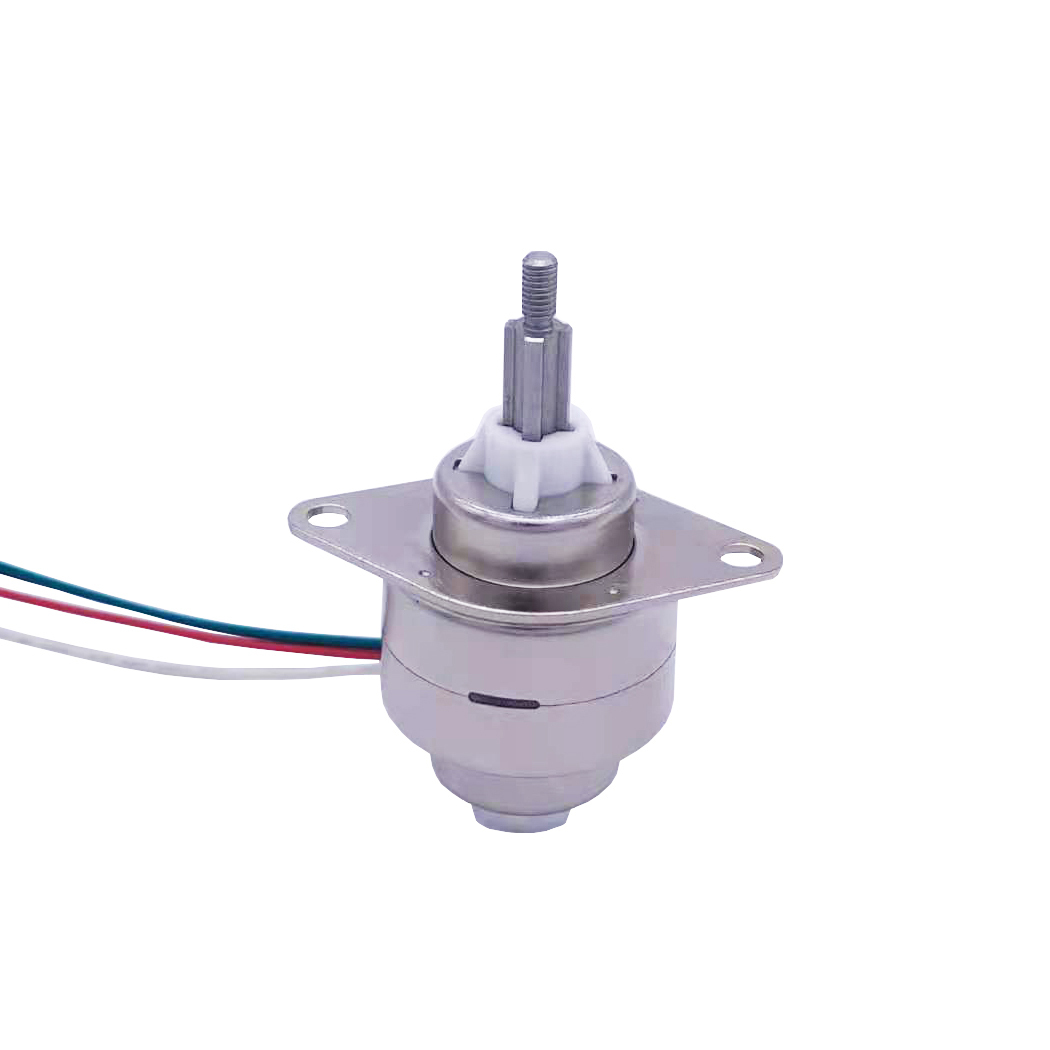

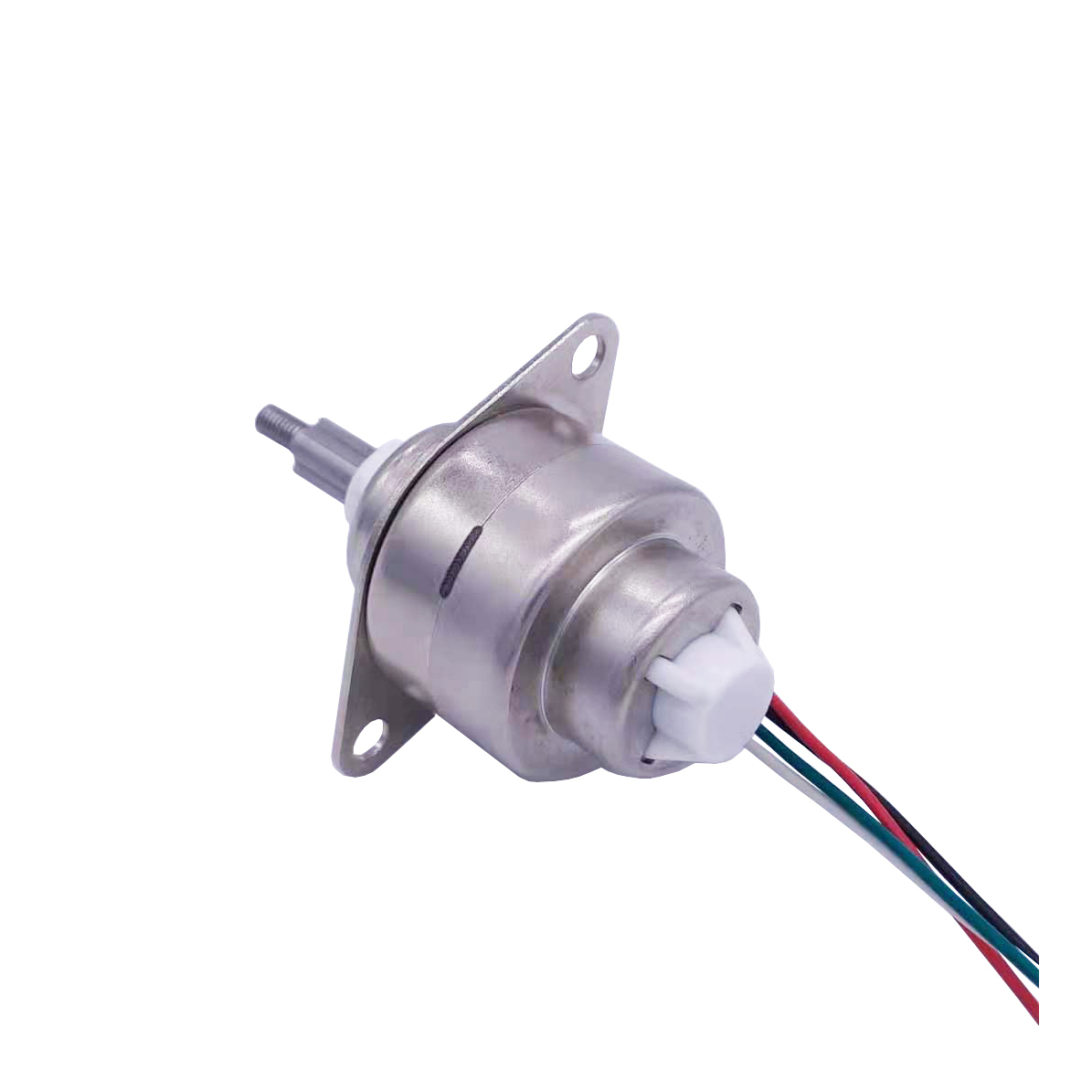

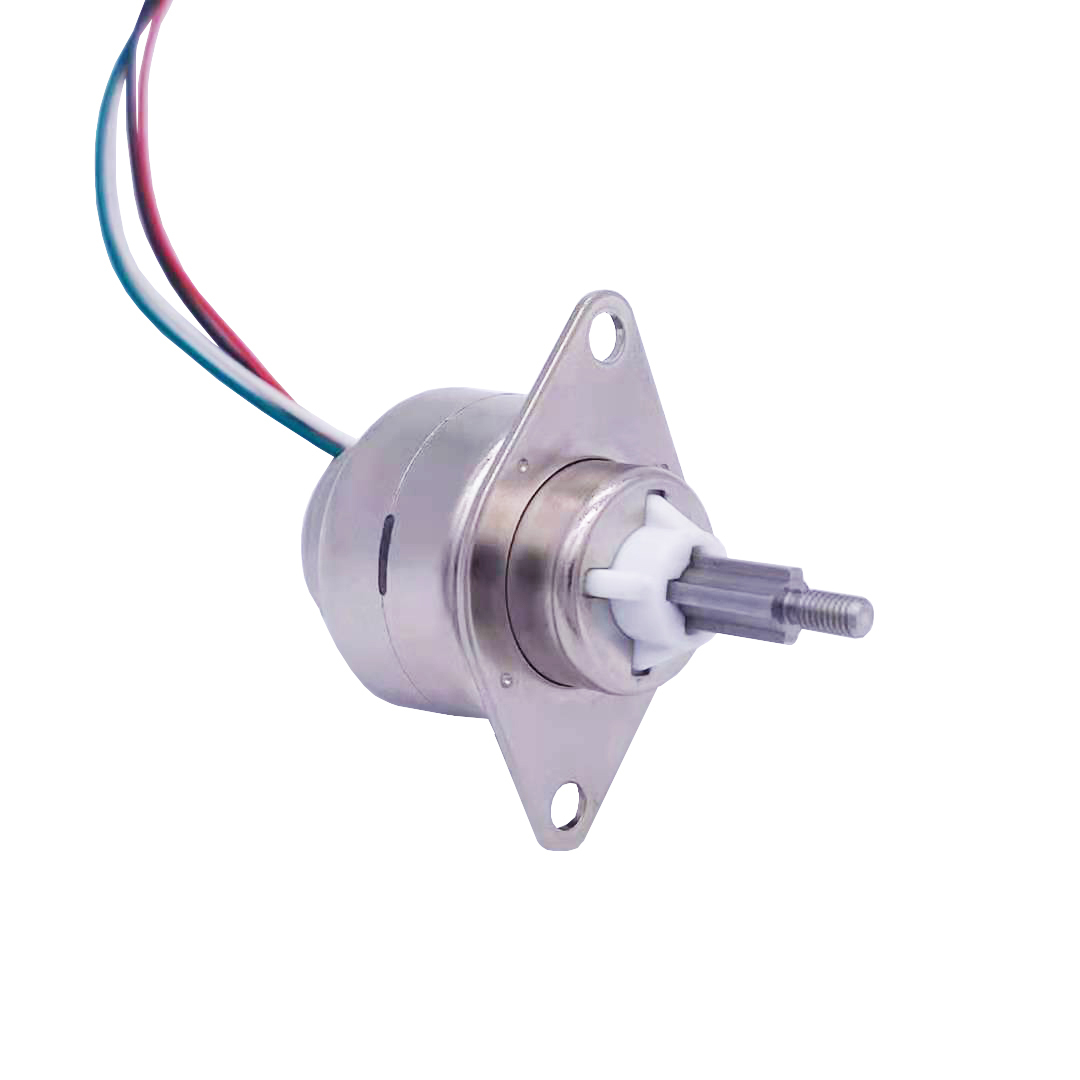

25mm Linear Stepper Motor 7.5 Degree 13mm Stroke 4 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke 5 25mm Linear Stepper Motor 7.5 Degree 13mm Stroke 6
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we offer custom design and development services. Through our commitment to quality and reliability, Vic-Tech Motor continues to pioneer in global markets.
FAQ
1. Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%) with a team of 51-100 professionals.
2. How can we guarantee quality?
Pre-production samples before mass production; Final inspection before shipment.
3. What can you buy from us?
Stepper motors, linear motors, geared motors, micro motors, BLDC motors.
4. Why choose us?
Specializing in micro motor production since 2011, we offer custom design services with our experienced R&D team.
5. What services do we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
