1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider

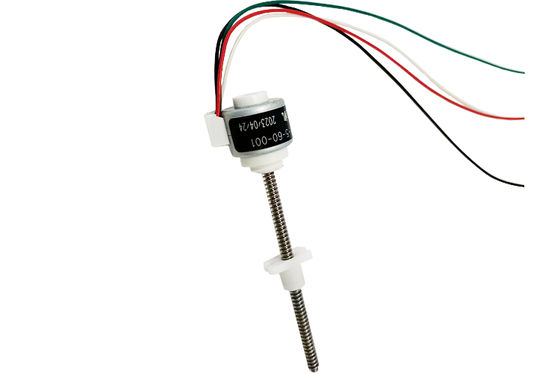

  • 1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider

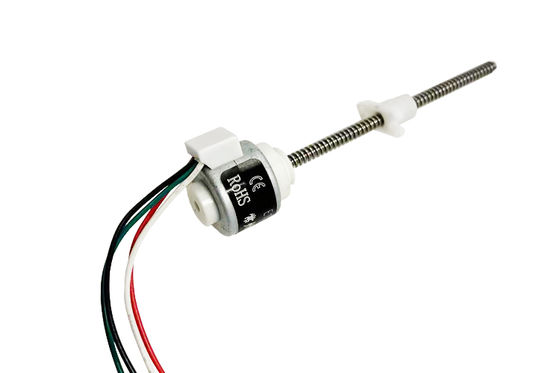

  • 1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider

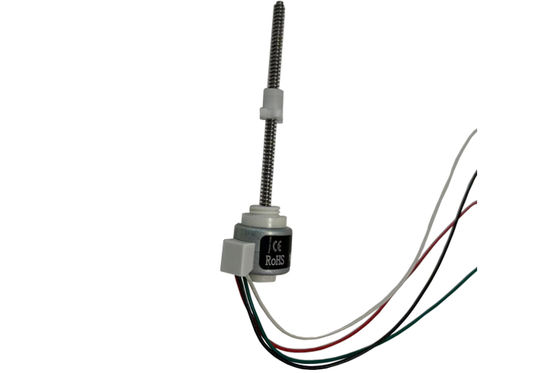

  • 1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider

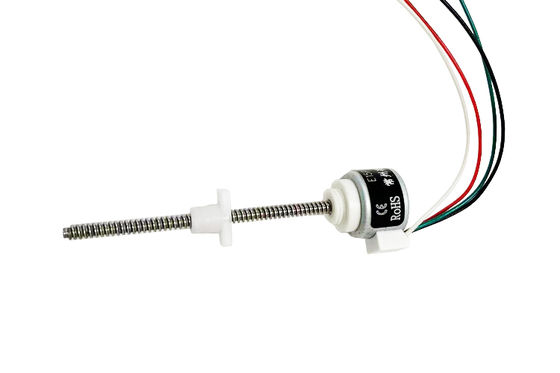

  • 1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider

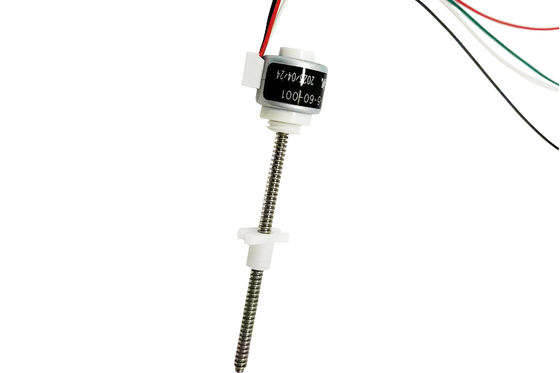

  • 1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider

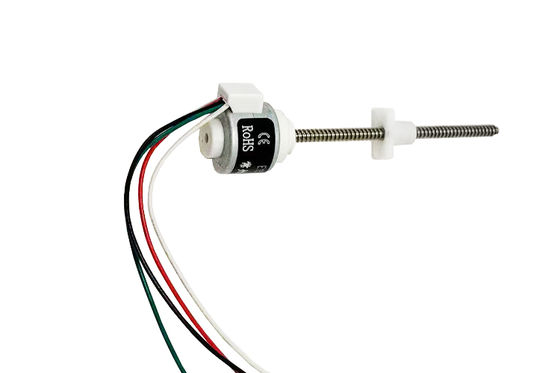

  • 1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider
Place of Origin China
Merknaam VIC-TECH
Certificering RoHS
Model Number 15PC34-0.5-5-31-001
Minimum Order Quantity 1Unit
Prijs $6.8~$30 /Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 100000 Units/year

Contacteer me voor vrije steekproeven en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Resistance 33Ω±10% Phase 2
Type Permanent Magnet Holding torque 5N
Step angle(degrees) 18° Voltage 5V
electric current 160mA
Laat een bericht achter
Productomschrijving

15mm linear stepper motor 6V 12V 2 phases 18° stepper motor

15mm diameter linear motor with plastic slider, screw stroke can be customized according to customer installation requirements, or customized according to customer requirements. External drive motor type can be used and selected according to customer needs
Meanwhile, the external wiring part usually consists of connecting wires and outlet boxes, and bare pins can also be customized according to customer needs
Our team has over 10 years of experience in the design, development, and production of stepper motors, so we can achieve product development and auxiliary design according to customers' special needs!
Customer needs are our efforts, please feel free to contact us at any time!







Mechanical Dimension:MM

1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider 0



otor parameters and specificatio

POWERYOLTAGE W 1.6
VOLTAGE V 5
PHASE CURRENT Ma 160
PHASE RESISTANCE 0hm/20C 33(±10%)
PHASE INDUCTANCE mH / 1kHz 8.7(±20%)
STEP ANGLE . 18
SCREWLEAD mm 0.5
STEP TRAVEL mm 0.025
LINEAR FORCE N/300PPS ＞5
SCREW LENGTH mm 31
INSULATION CLASS 　 B
INSULATION RESISTANCE M(DC 500V) 20
OPERATING TEMP RANGE ℃ -20~+55℃
STORANG TEMP RANGE ℃ -40~+100℃
MASS g 35

Technical Features

This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative

movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile

machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.

according to customer requirements.
The output part is linear.

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

15mm Linear Stepper Motor With 5Vdc Lead Screw Bipolar Customized

1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider 1







Customization service

The motor can customize the normal screw stroke,

Connectors and outlet boxes can be customized according to customer requirements

The screw rod can also customize the nut

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation



1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider 2

Packing and Shipping:

Packaging and Shipping
  • The Micro Stepper Motor is packed in a sturdy box.
  • Protective packaging material is used to protect the product from damage during shipping.
  • The package is securely sealed.
  • The package is shipped through a reliable carrier.
  •

1.8 step motor 15mm diameter micro Linear Stepper Motor with 5VDC Lead Screw Bipolar with plastic slider 3
